AMARAN
F22C
The amaran F22c is a 2’x2’ ultra-lightweight flexible LED mat that offers outstanding light output and color rendering for indie filmmakers, videographers, content creators, and photographers who need a versatile and flexible lighting solution or want to add a splash of color to their scene.
Features
2X2 FORM FACTOR
As an ultra-light, ultra-thin fabric light, the F22c is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a simple, soft light that can fold compactly, it is the perfect close-up key light. Its traditional 2’x2’ form factor allows the F22c to provide ample surface area for an innately soft light, while still producing enough intensity to impact the scene.
FULL COLOR CONTROL
With its integrated RGBWW chipset, the F22c flexible panel grants you full control over creative lighting decisions, or adding a splash of color to your scene through its tunable CCT from 2,500K to 7,500K with green-magenta adjustment, 360º HSI control, 46 color gel presets, 15 built-in lighting effects, and 4 user-configurable preset buttons.
ULTIMATE FLEXIBILITY
The F22c and its compact setup design is ideal for all types of filmmakers and creators. The F22c includes a compact, folding X-Frame to quickly build the F22c into a rigid panel with ease. This frame can be attached directly to a C-Stand grip head using the Straight Baby Pin adapter, or onto any standard light stand with the included Right Angle Baby Pin and tilting stand mount.
POWER FLEXIBILITY

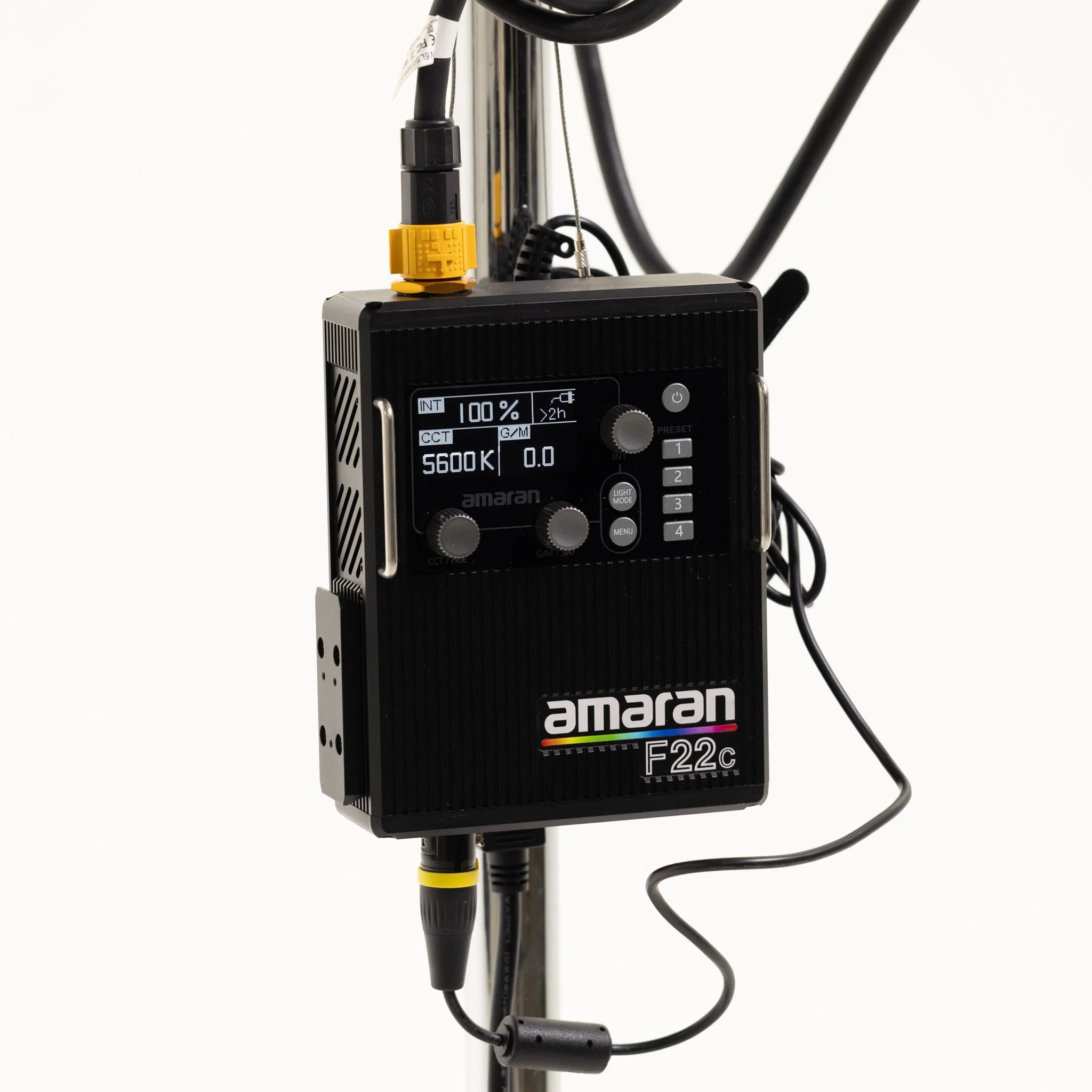

For creators looking for a compact and portable lighting solution with a seamless user experience, the F22c control box features a multi-voltage V-Mount or Gold-Mount battery plate compatible with 14.4V/26V/28.8V/48V batteries. Full output can also be achieved using the AC power supply.
REDEFINED SOFT SOURCE

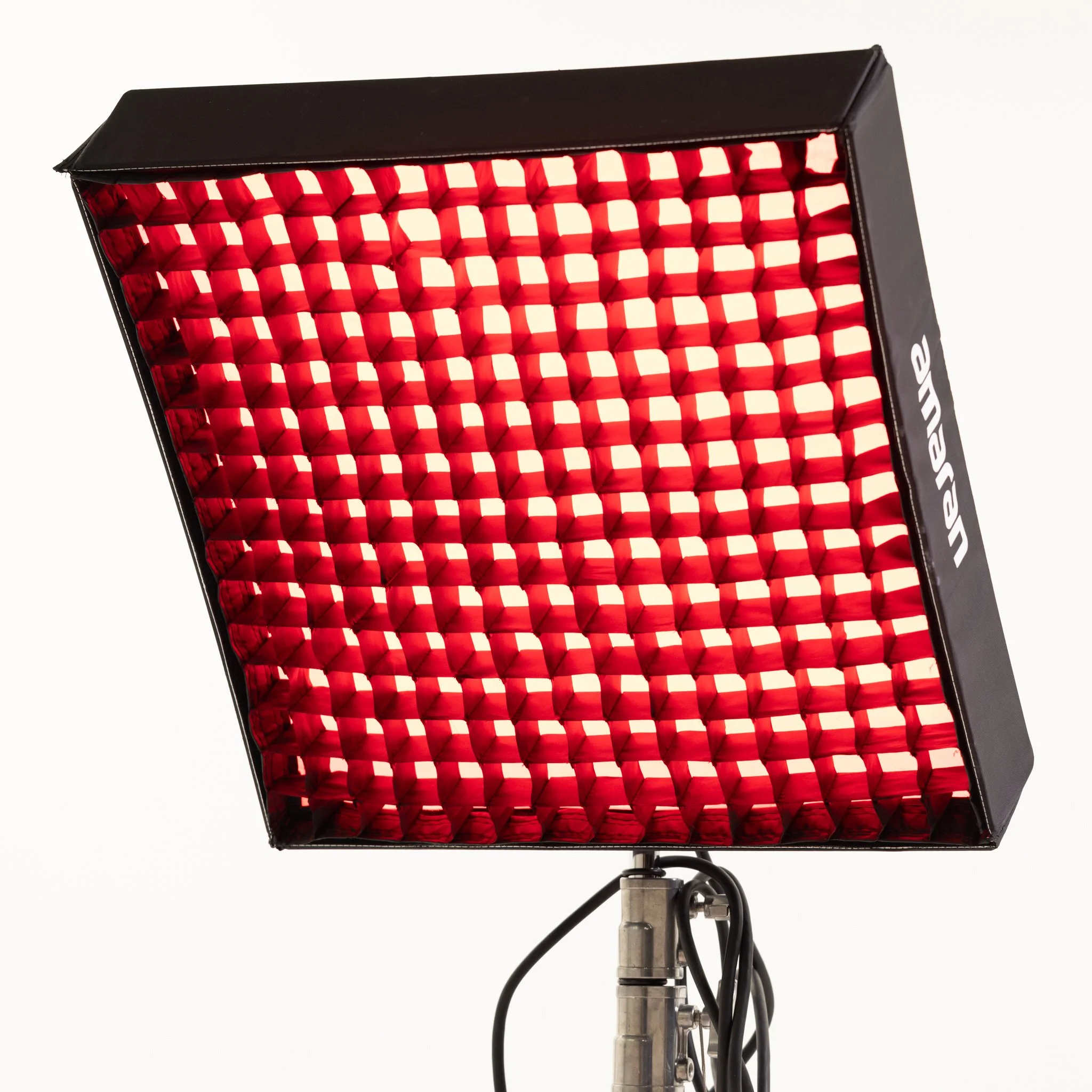

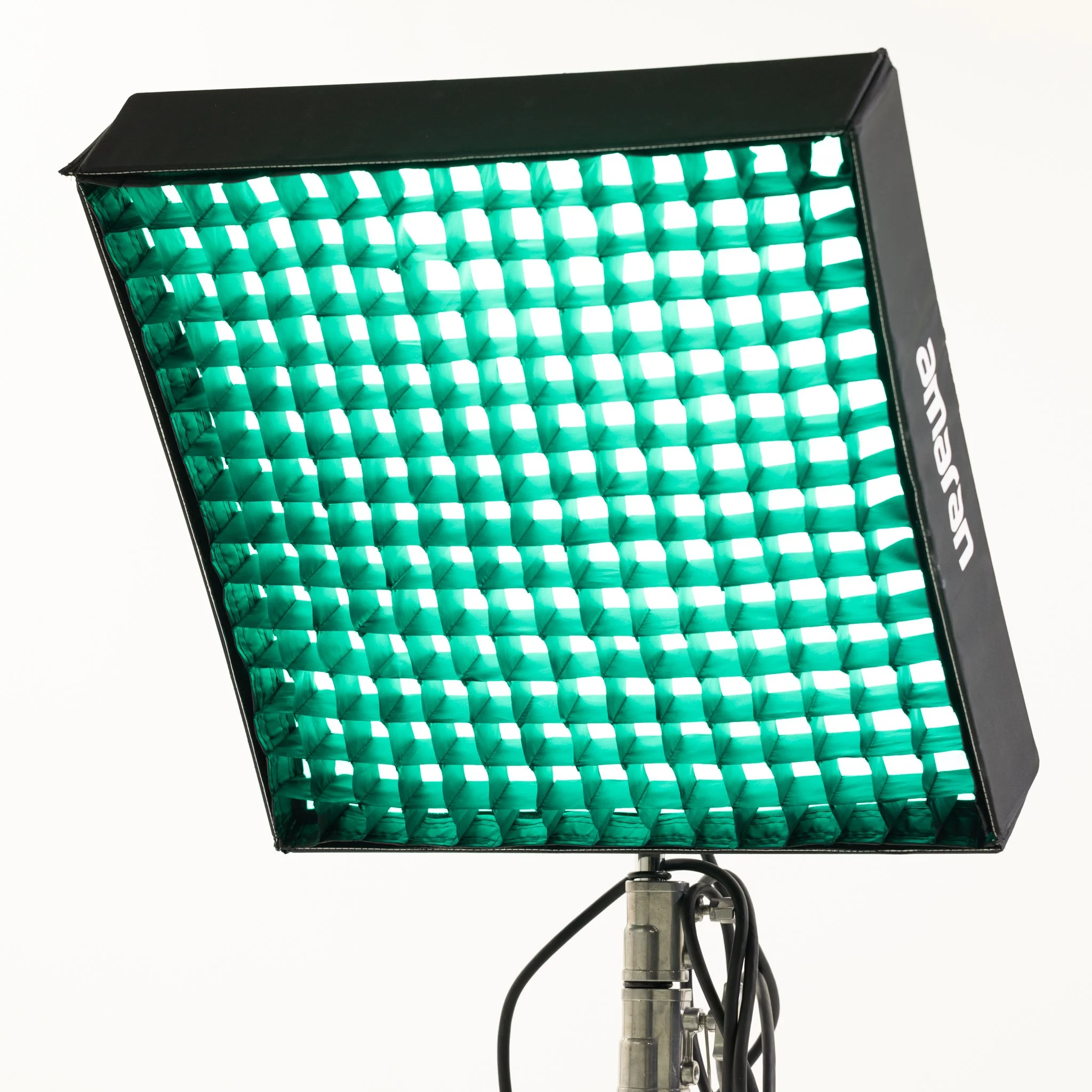

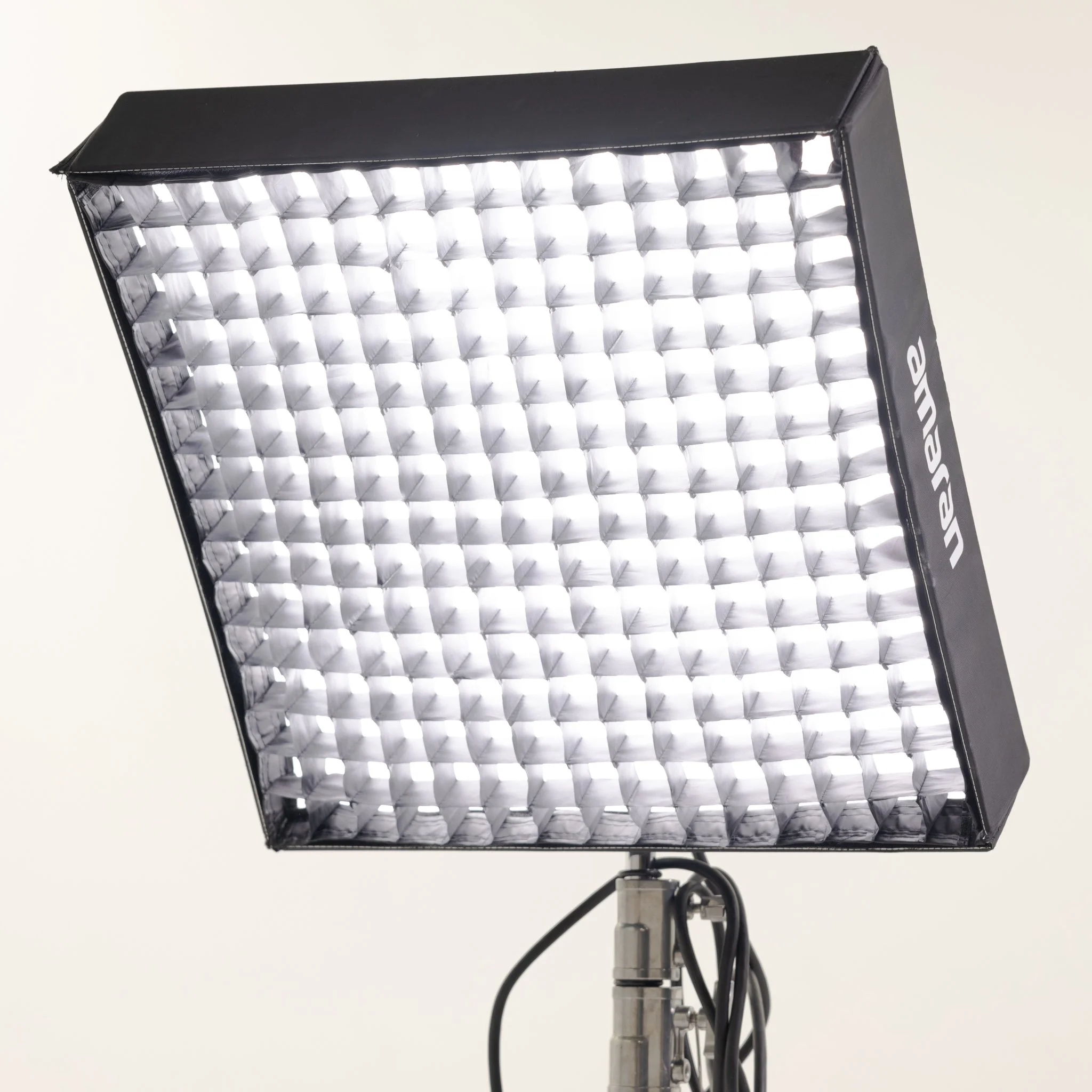

To add a beautifully controlled soft light to your scene, attach the included softbox, one of two strengths of diffusion cloths, or the included light control grid using the integrated hook-and-loop fabric to further finesse your lighting design. The F22c can also be combined with the amaran F22 Lantern with light control skirt to extend the fixture as a volumetric lantern or pancake light.
SIDUS LINK APP
For content creators who prefer wireless controls to spend more time behind or in front of the camera, the Sidus Link app will allow you to utilize tools unique to the Aputure and amaran ecosystems to control the F22c. With the Source Match, Color Picker, Gel Control and Custom FX functions all in the palm of your hand, choosing the perfect color for the scene has never been easier.
PROFESSIONAL CONTROLS
In addition to controlling your lighting design from Sidus Link, the F22c can be controlled externally via wired DMX with the USB-C to 5-Pin DMX512 In & Out Adapter*, adding professional-level control to your favorite flexible light mat.
* USB-C to 5-Pin DMX512 In & Out Adapter not included.
TECH SPECS
CCT: 2500K~7500K
CRI: ≥95
TLCI: ≥97
CQS: ≥96
TM-30 RF (Average): 94
TM-30 RG (Average): 102
SSI (Tungsten): ≥83
SSI (D56): ≥74
Color Chipset: Red, Green, Blue, Warm White, Cool White
Beam Angle (Control Grid): 45°
Max Power Output: ≤200W
Max Power Consumption: ≤240W
Operating Current: 5A
AC Power Supply: 48V DC
D-Tap Battery: 12-28.8V DC
Battery Compatibility: 16.8V, 26V, 28.8V
DC Input: (3m) DC Self-locking
AC Power Cable: Self-locking IEC C13 AC Power Cable (4m)
Operating Temperature: -10°C ~ 40°C / -4°F ~ 113°F
Control Methods: On-board, Sidus Link App, DMX
Connectivity: Bluetooth 5.0 (Sidus Mesh)
Bluetooth Operating Range: ≥80m / 262.5ft
Firmware Upgradeable: Sidus Link OTA
Display Type: OLED
Fixture Cooling Method: Natural Dissipation
Control Box Cooling Method: Natural Dissipation
Umbrella Holder: Yes
Soft Box: Yes
Mounting: 1/4-20in * 3, Tilting Support Column
Estimated LED Lifetime (L70): 50,000 Hours
Estimated Color Shift Over Lifetime (CCT): 2% over 6,000 Hours
Certifications: CE, FCC, cTUVus, KC, NCC, ROHS
RENTAL
PRICE
$65 for the first day
Each day is an additional $5 for up to 7 days.
Let me know if you wish to rent for longer than 7 days!
